DT05 5-sec Digital Transit/Theodolite

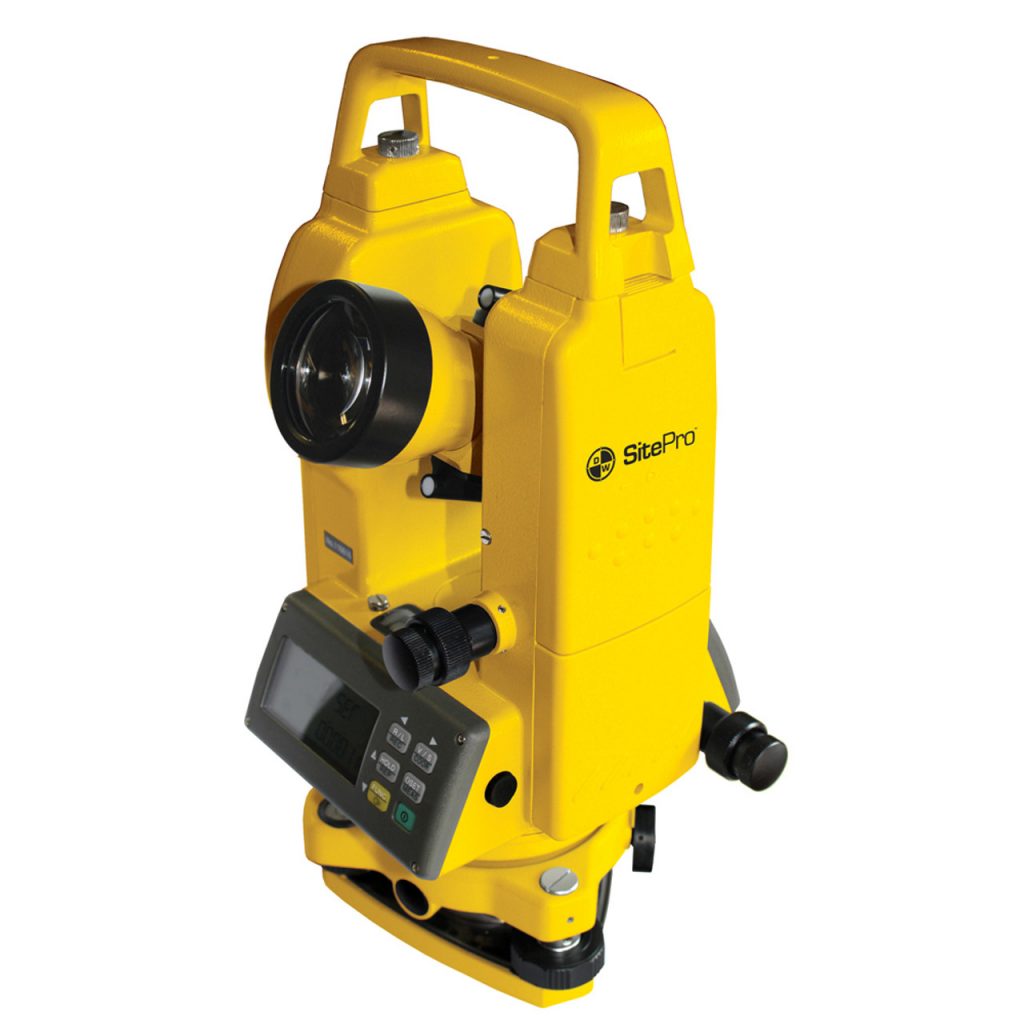

DT05 5-SEC DIGITAL THEODOLITE

26-DT05

  • Incremental encoding detection system with dual digital displays
  • Automatic power shut-off
  • Optical plummet for centering of point
  • Coaxial tangent and clamp screws provide ease of use in sighting and alignment
  • Built-in battery pack can be attached and detached by a single action
  • Water resistant, sealed construction

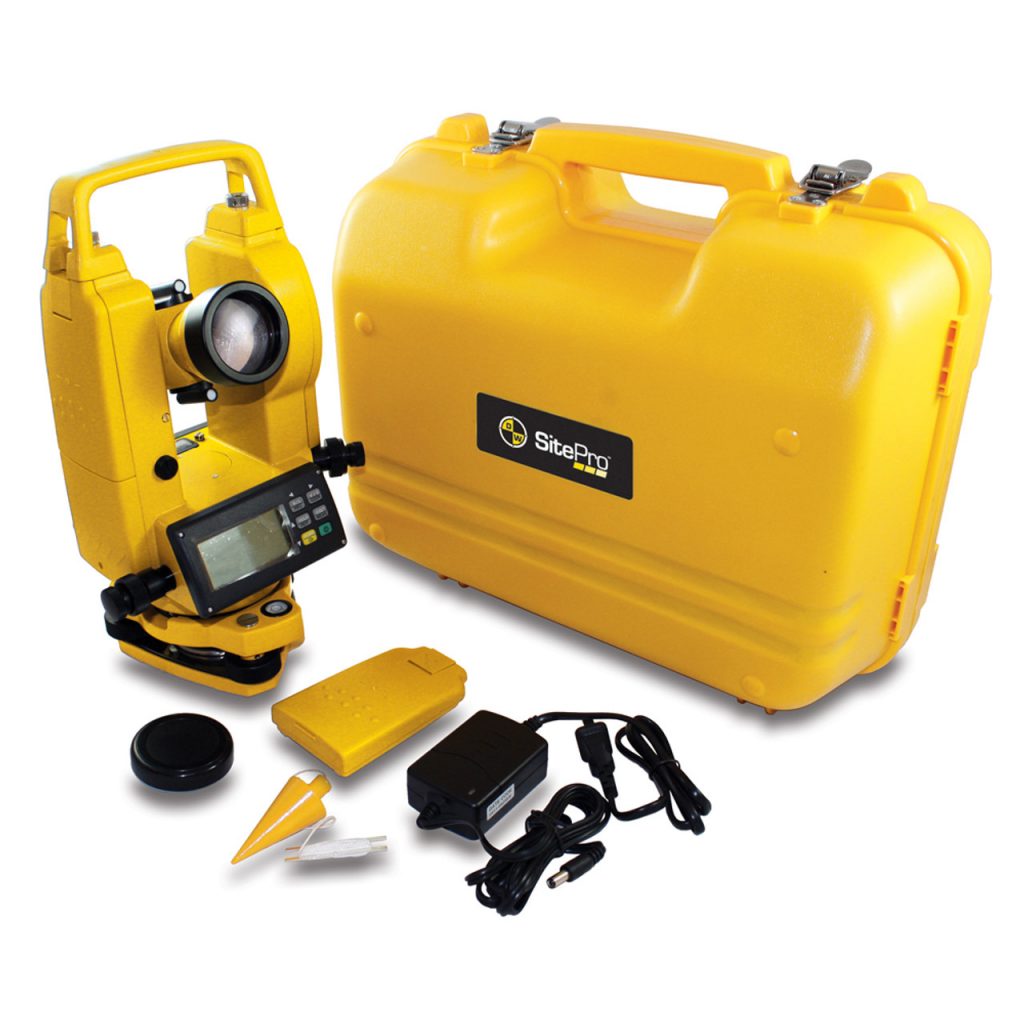

Package Content: Digital Theodolite/Transit, Sunshade, Tool Kit, Rain Cover, Plumb Bob, Carrying Case, Rechargeable Battery Pack/Charger, Alkaline Battery Tray, User Manual

SPECIFICATIONS

  • Magnification: 30X
  • Resolving Power: 3.5”
  • Field of View: 1°30’
  • Minimum Focus: 4.27-ft (1.3m)
  • Angular Accuracy: 5 Sec.
  • Minimum Reading: 1” / 5” switchable
  • Minimum Focus: 1.3m or 4.26ft
  • Stadia Ratio: 1:100
  • Tilt Sensor: Yes, ± 3’
