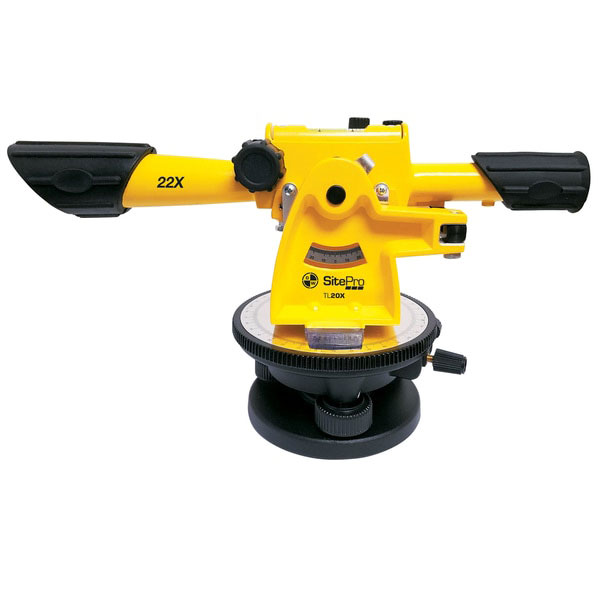

| SitePro 25-TL20X 22X MERIDIAN TRANSIT-LEVEL Modestly priced and easy to use, these instruments are designed for light construction work for leveling, turning angles, and determining vertical angles.± 1/4-inch at 100-feet leveling accuracyUp-to 200-foot rangeHorizontal Circle– Graduated to single degrees and reads by vernier direct to 1/4 degree (15 minutes)Features a Vertical Arc– Read to degrees (0-45º)Horizontal Lock and Tangent Screw– Provides precise movement controlBuilt-in Sunshade – For clearer sightingsLeveling Vial – Top mounted for effortless viewing |
| SitePro 25-TL20X MERIDIAN TRANSIT-LEVEL INCLUDES |
| 44-8834 (LT6-900) Transit-Level Instrument Plumb Bob Heavy-Duty Hard Carrying CaseOwners Manual2-Year Warranty |
| SitePro 25-TL20X Transit-Level SPECIFICATIONS |
| Accuracy: 1/4 in at 100 ft Range: Up to 200 ft TelescopeMagnification: 22-powerLength: 10.5-inch Minimum Focus: 4 ft (1.2 m)Aperture: 0.75-inch Field of View: 2-feet @ 100-foot No. of Lenses: 6Horizontal CircleGraduation Diameter: 3.62-inch Graduations: Each 1°Numbers: Each 10°, 0-90-0°Vernier: Double direct to 15 min.Vertical ArcGraduations: Each 1°Numbers: Each 10°, 45-0-45°OtherCenter: Planar bearingLevel Vial: 10 min. per 2 mmWeight: 4.5 lbs |
| SitePro 25-TL20X Transit-Level APPLICATIONS |
| Short range leveling Turning angles, establishing 90° reference linesDetermine vertical angles, basic grade workChecking angles, alignment and plumbAnchor bolt alignmentGravity flow pipe laser set-upAligning FormsAligning Walls |
| SitePro 25-TL20X Transit-Level TECHNICAL DATA RANGE Up to 200 feet ACCURACY 1⁄4-inch at 100 feet TELESCOPE MAGNIFICATION 22-POWER LENGTH 10.5-inch MINIMUM FOCUS 4-foot APERTURE 0.75-inch FIELD OF VIEW 2-foot at 100 feet NUMBER OF LENSES 6 HORIZONTAL CIRCLE GRADUATION DIAMETER 3.62-inch GRADUATIONS Each 1° NUMBERS Each 10°, 0-90-0° VERNIER Double direct to 15 min. VERTICAL ARC GRADUATIONS Each 1° NUMBERS Each 10°, 45-0-45° CENTER TYPE Planar bearing LEVEL VIAL ACCURACY 10 min. per 2 mm WEIGHT INSTRUMENT ONLY 4.5 pounds TRIPOD TYPE 5/8-11 thread |
For more information
| SitePro Meridian Level-Transit FEATURES |
 |
| TELESCOPE OBJECTIVE LENSEYEPIECEFOCUSING KNOBSINSTRUMENT LEVEL VIAL HORIZONTAL GRADUATED CIRCLEHORIZONTAL VERNIERHORIZONTAL CLAMPHORIZONTAL TANGENTTELESCOPE LOCK LEVERVERTICAL ARC VERTICAL ARC POINTER VERTICAL CLAMP VERTICAL TANGENT THREE LEVELING SCREWS 5/8-11 THREADED BASE BUBBLE LEVEL ADJUSTMENT SCREW |
